Mobile scaffold lift XL

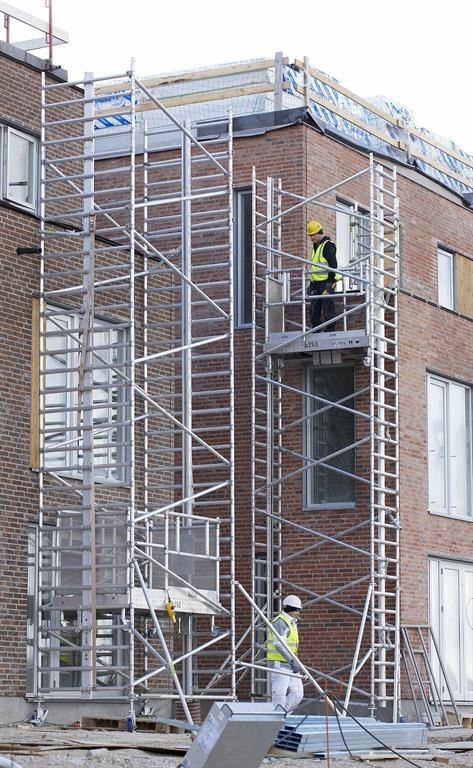

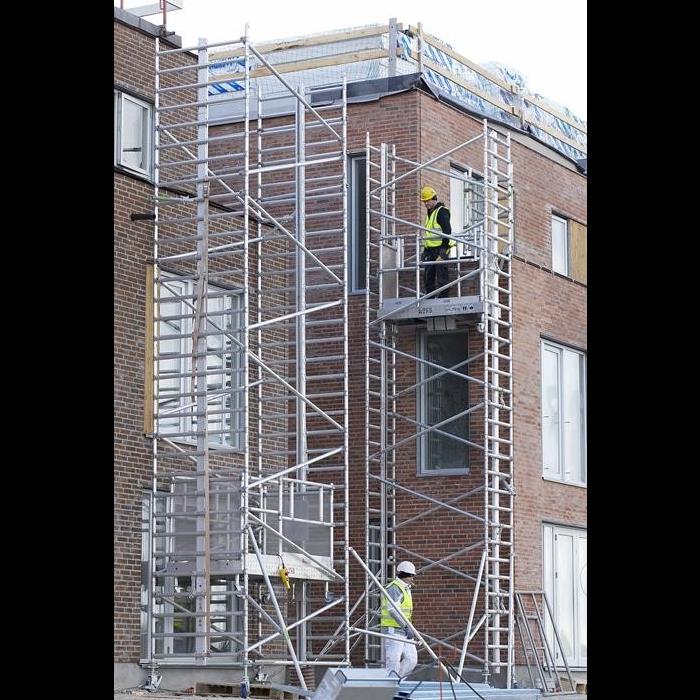

The Mobile Scaffold Lift, Type XL, is an electric scaffold lift with a maximum working height of 14 meters. It has been specifically developed to provide a workspace where individuals can work safely and ergonomically from a platform.

Important features

MAX. WEIGHT 250 KG

Operable by 1 person

Max. working height 14 m

Works with wired control

1 hour non-stop battery life

Fully electric

For indoor and outdoor use

built Compact/lightweight

Request for price
Stock: 0

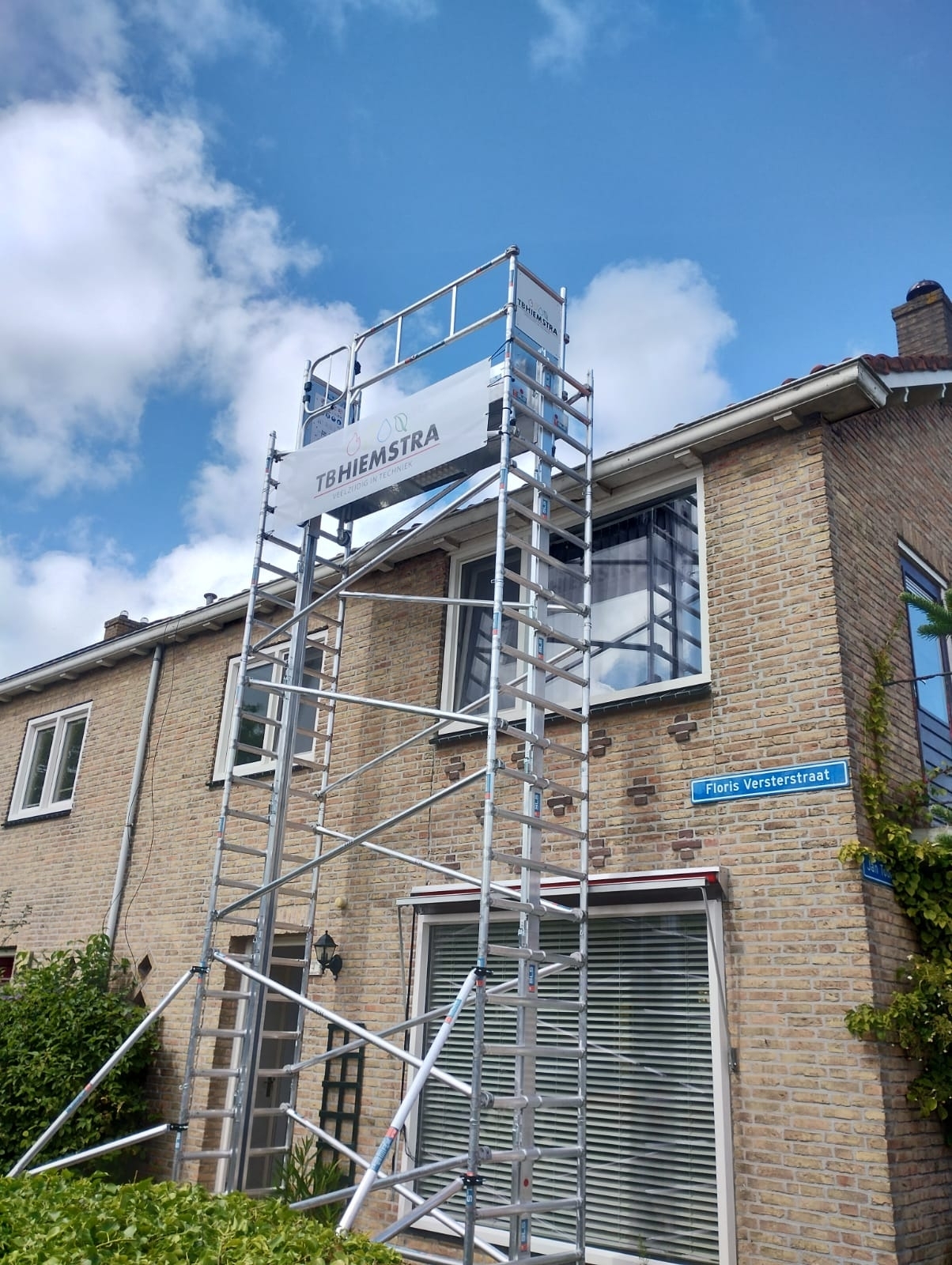

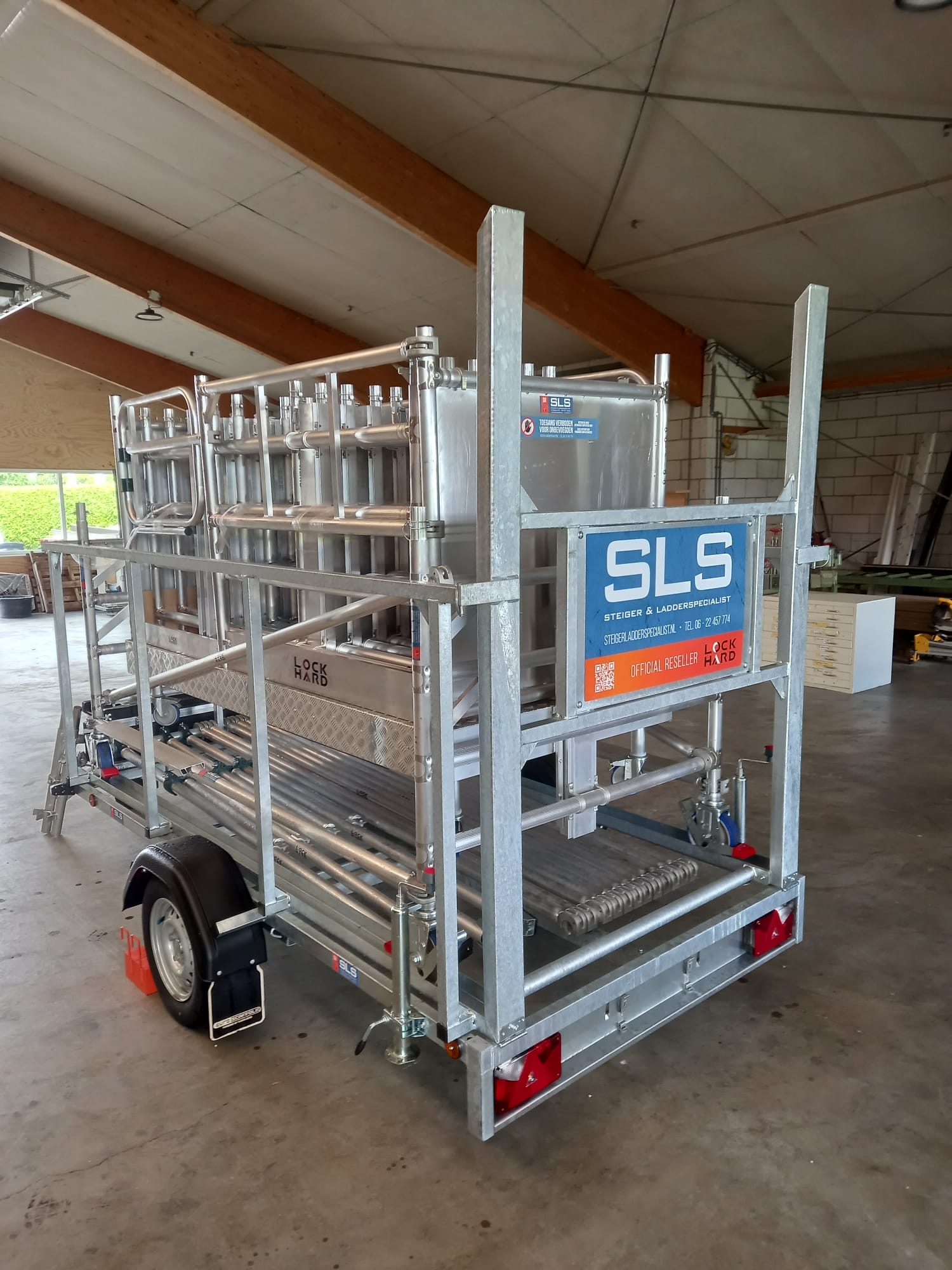

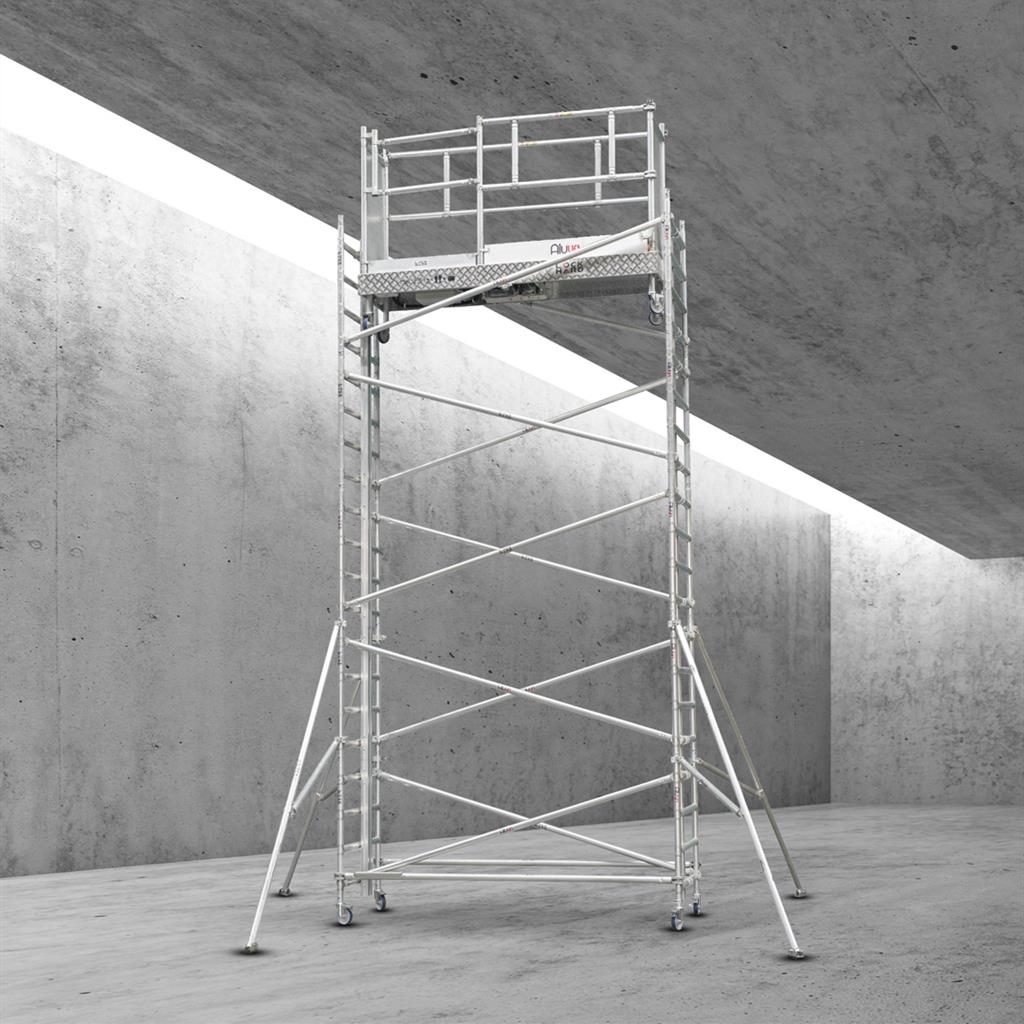

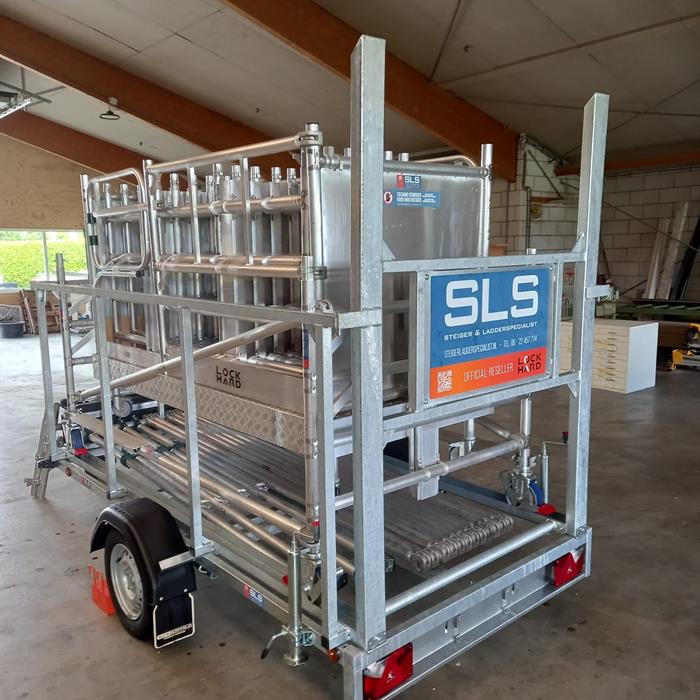

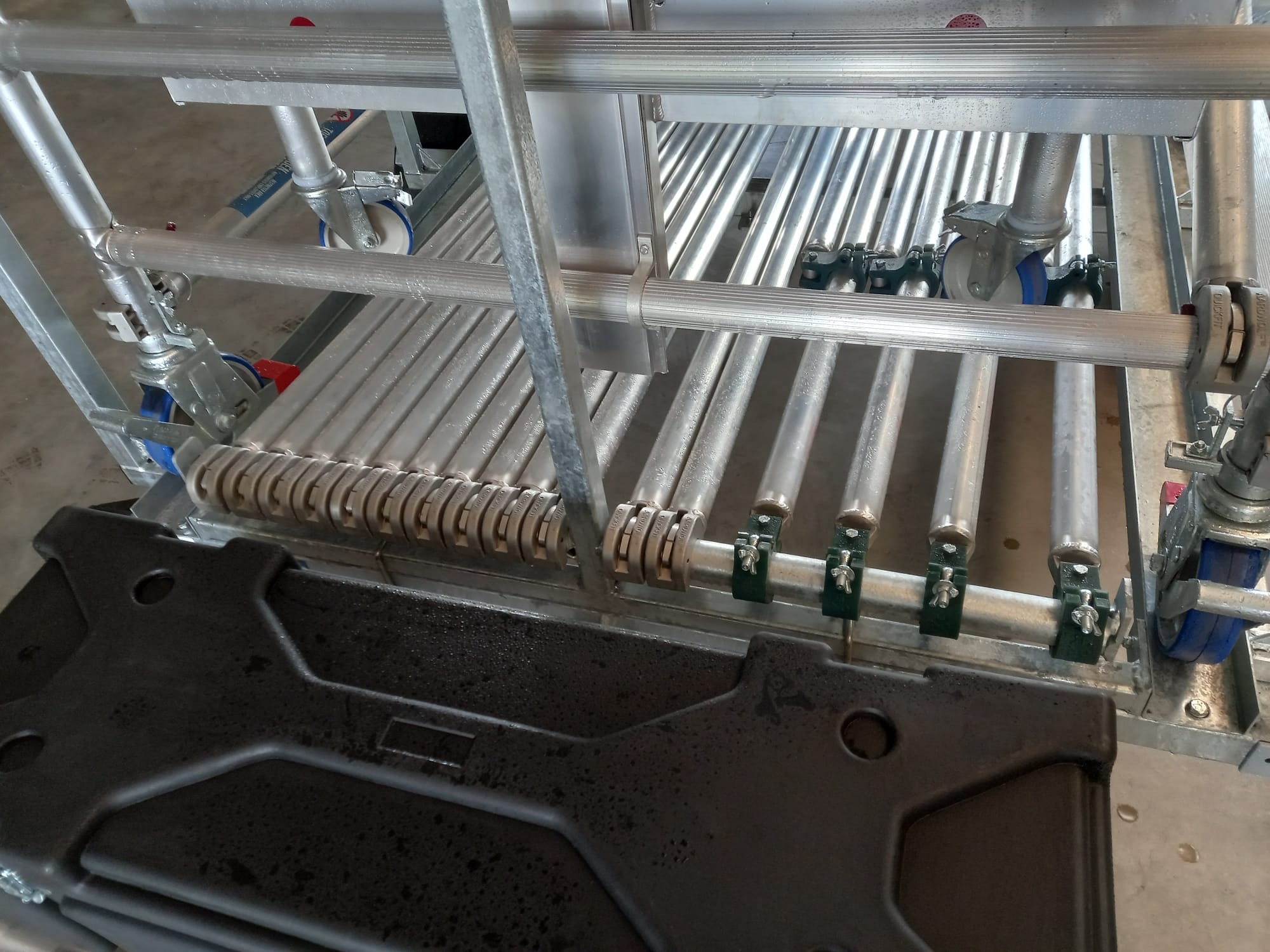

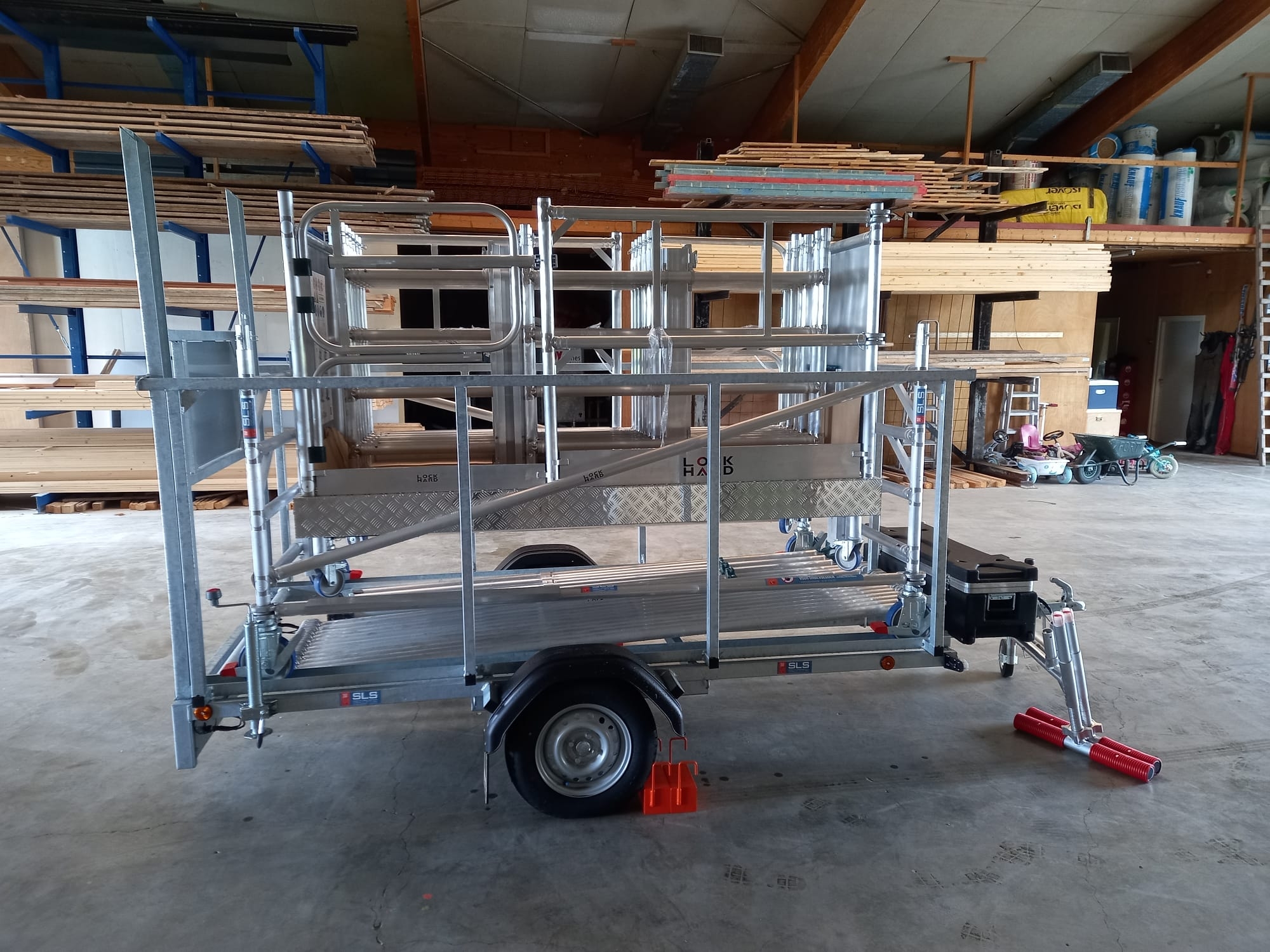

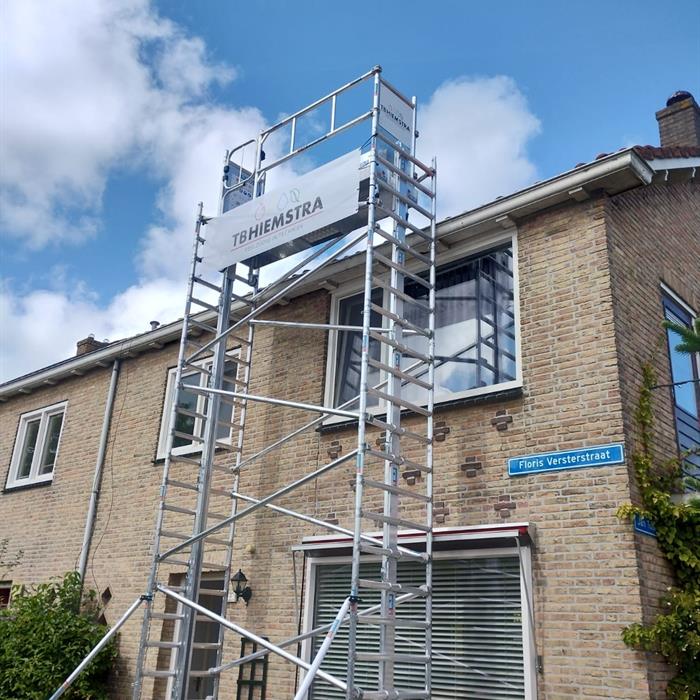

Mobile scaffold lift XL
Mobile scaffold lift XL
Mobile scaffold lift XL
Mobile scaffold lift XL
Mobile scaffold lift XL
Mobile scaffold lift XL

Specifications

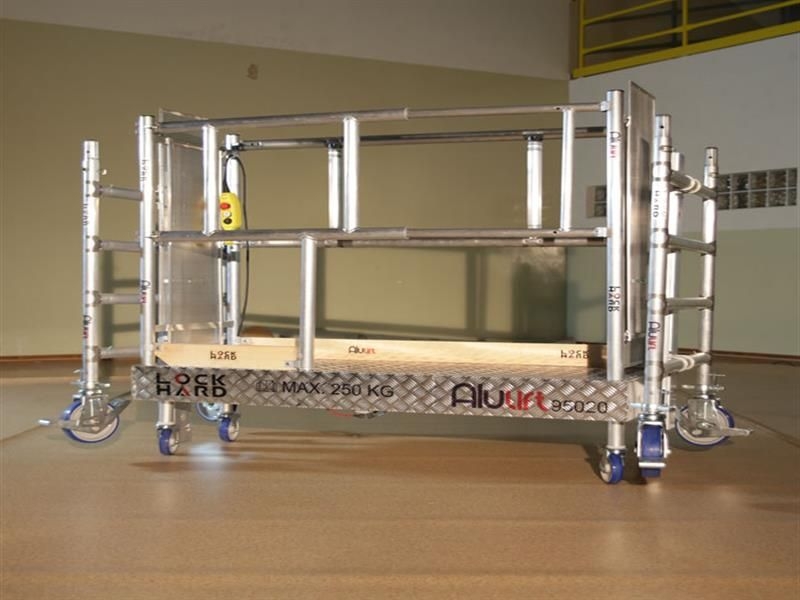

Platform dimensions
1100 x 2400 mm

Max. Load Capacity
250 KG

External dimensions
1390 x 2640 mm

Battery
2 x 12 V DC (1000 charging cycles),the lift can run 24/7 on 230 volts.

Working height
1 - 14 m

Battery usage time
1 hour non-stop at 8 m scaffold height and 250 kg load!

Wheels
4 wheels with ø 125 mm brake

4 adjustable wheels with ø 200 mm









MAX. HEIGHT ARTICLE NUMBER WEIGHT
1 M 100 XL 181 KG
2 M200 XL211 KG
3 M300 XL240 KG
4 M 400 XL 287 KG
5 M 500 XL 316 KG
6 M 600 XL 346 KG
7 M 700 XL 376 KG
8 M 800 XL 405 KG
9 M 900 XL 435 KG
10 M 1000 XL 464 KG
11 M1100 XL495 KG
12 M1200 XL524 KG
