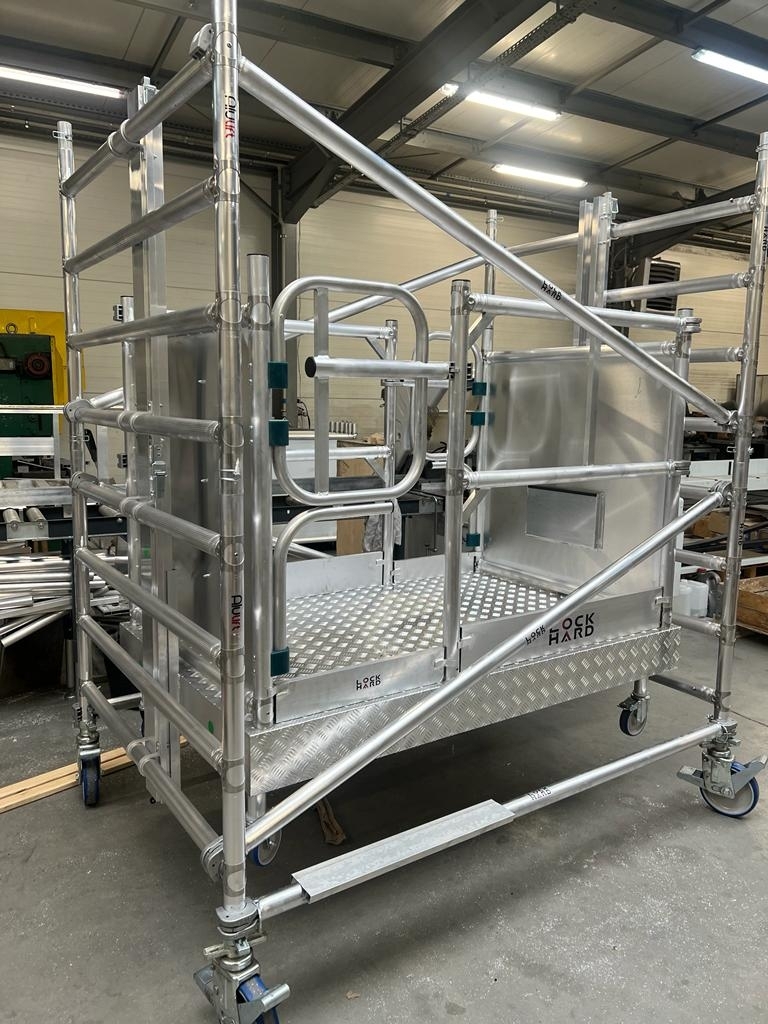

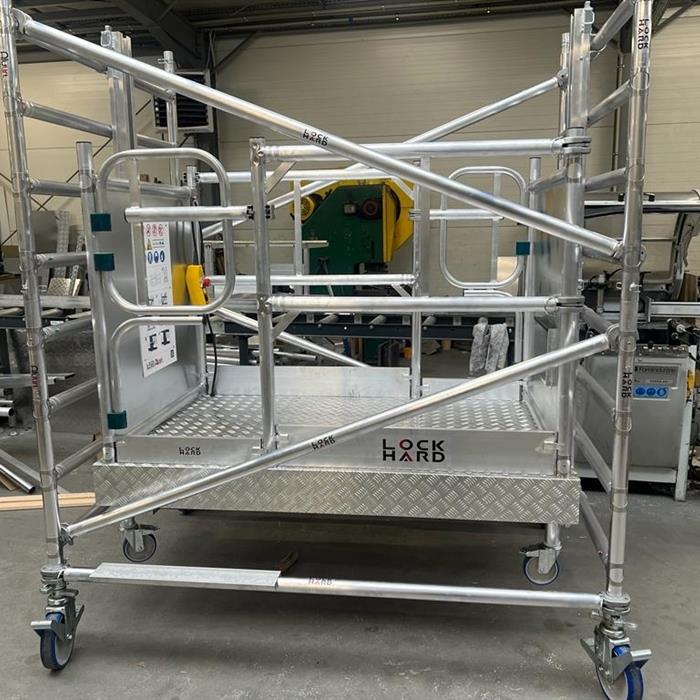

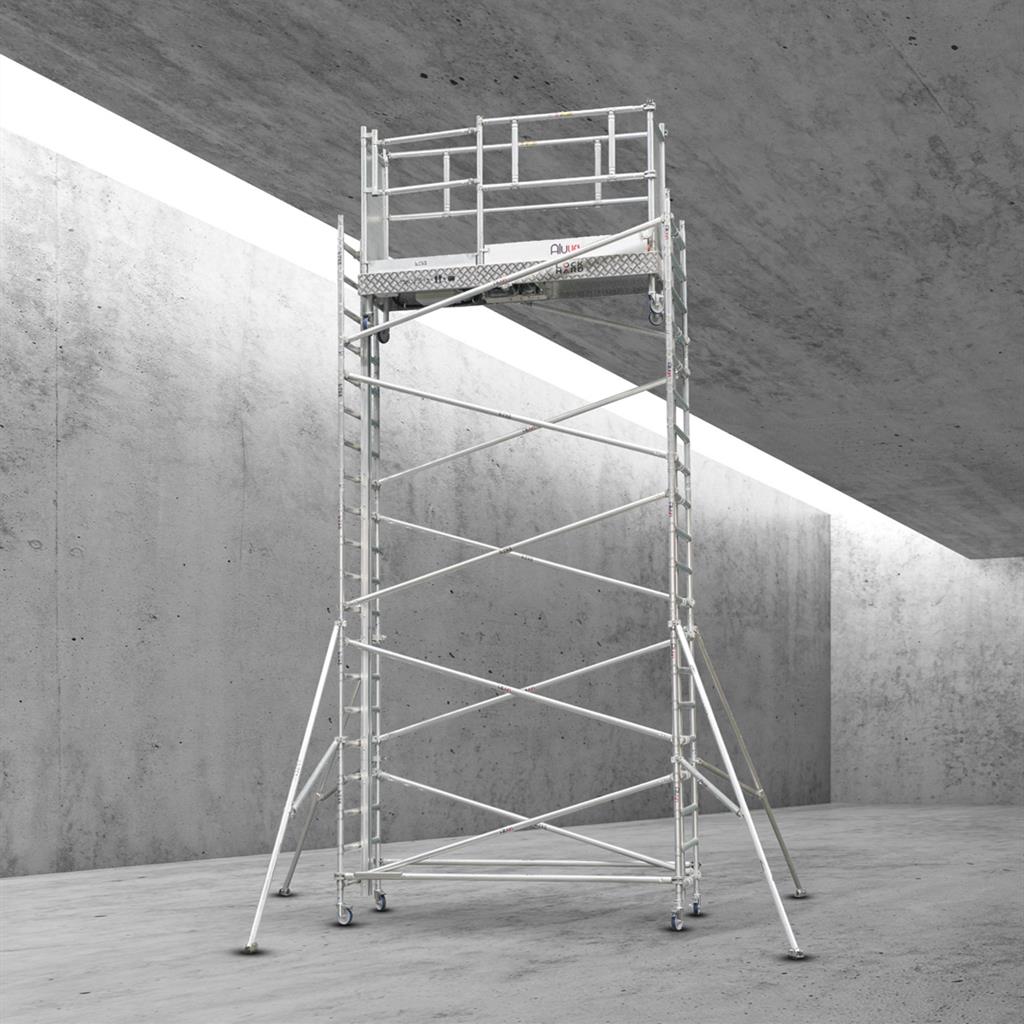

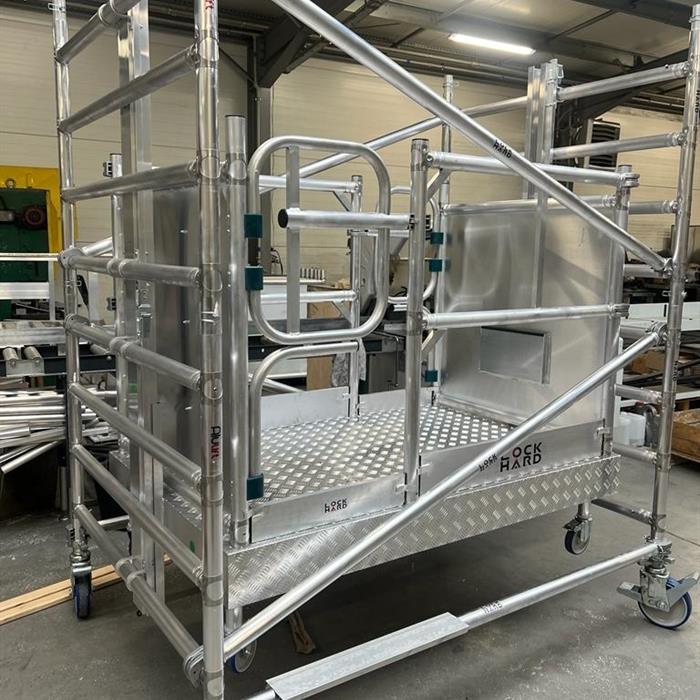

Mobile scaffold lift L

The Mobile Scaffold Lift, Type L, is an electric scaffold lift with a maximum working height of 14 meters. It has been specifically developed to provide a workspace where individuals can work safely and ergonomically from a platform.

Important features

MAX. WEIGHT 250 KG

Operable by 1 person

Max. working height 14 m

Works with WIRED control

1 hour non-stop battery life

Fully electrIc

For indoor and outdoor use

Built Compact/lightweight

Request for price
Stock: 0
Mobile scaffold lift L
Mobile scaffold lift L
Mobile scaffold lift L
Mobile scaffold lift L
Mobile scaffold lift L
Mobile scaffold lift L

Specifications

Platform dimensions
1100 x 1720 mm

Max. Load Capacity
250KG

External dimensions
1390 x 1960 mm

Battery
2 x 12 V DC (1000 Charging cycles), the lift can run on 230 volts 24/7.

Working height
1 - 14m

Battery usage time
1 hour non-stop at 8 m scaffold height and 250 kg load!

Wheels
4 wheels with ø 125 mm brake

4 adjustable wheels with ø 200 mm







MAX. HEIGHT ARTICLE NUMBER WEIGHT
1 M 100 M 160 KG
2 M 200 M 187 KG
3 M 300 M 213 KG
4 M 400 M 257 KG
5 M 500 M 283 KG
6 M 600 M 310 KG
7 M 700 M 337 KG
8 M 800 M 363 KG
9 M900 M390 KG
10 M1000 M416 KG
11 M1100 M443 KG
12 M1200 M470 KG
